Rules Engine

After data has been extracted by a Service from a document, the AIForged Rules Engine is invoked to validate the OCR text returned. A certain Rule Type can be applied to a field on a document to trigger manual Human-in-the-Loop intervention when the OCR test does not meet the conditions of the Rule. A Rule can also be used to correct the OCR text (such as converting letters to a corresponding number where a number is expected) or matching format patterns (such as matching date patterns containing special characters like ‘/’ or ‘-‘, or e-mail addresses expecting characters like ‘@’ and ‘.’).

One of the following can be assigned to a field on a document, and is explained in detail in the following sections:

  • Address
  • Boolean
  • Code
  • Country
  • Currency
  • DateTime
  • E-mail Address
  • Enum
  • GPS Coordinates
  • ID NUmber
  • Number
  • Password
  • Picture
  • Secure String
  • String
  • Telephone Number
  • Timespan

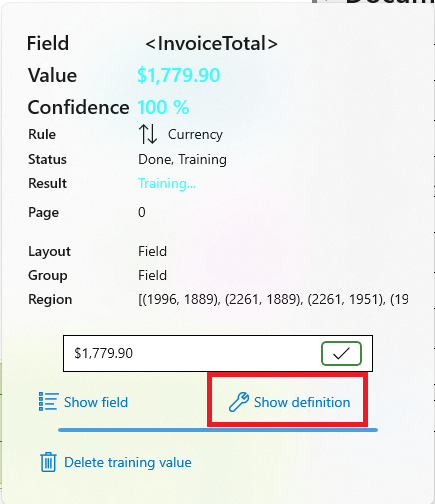

To setup a Rule, select any field on a document, and select Show Definition.

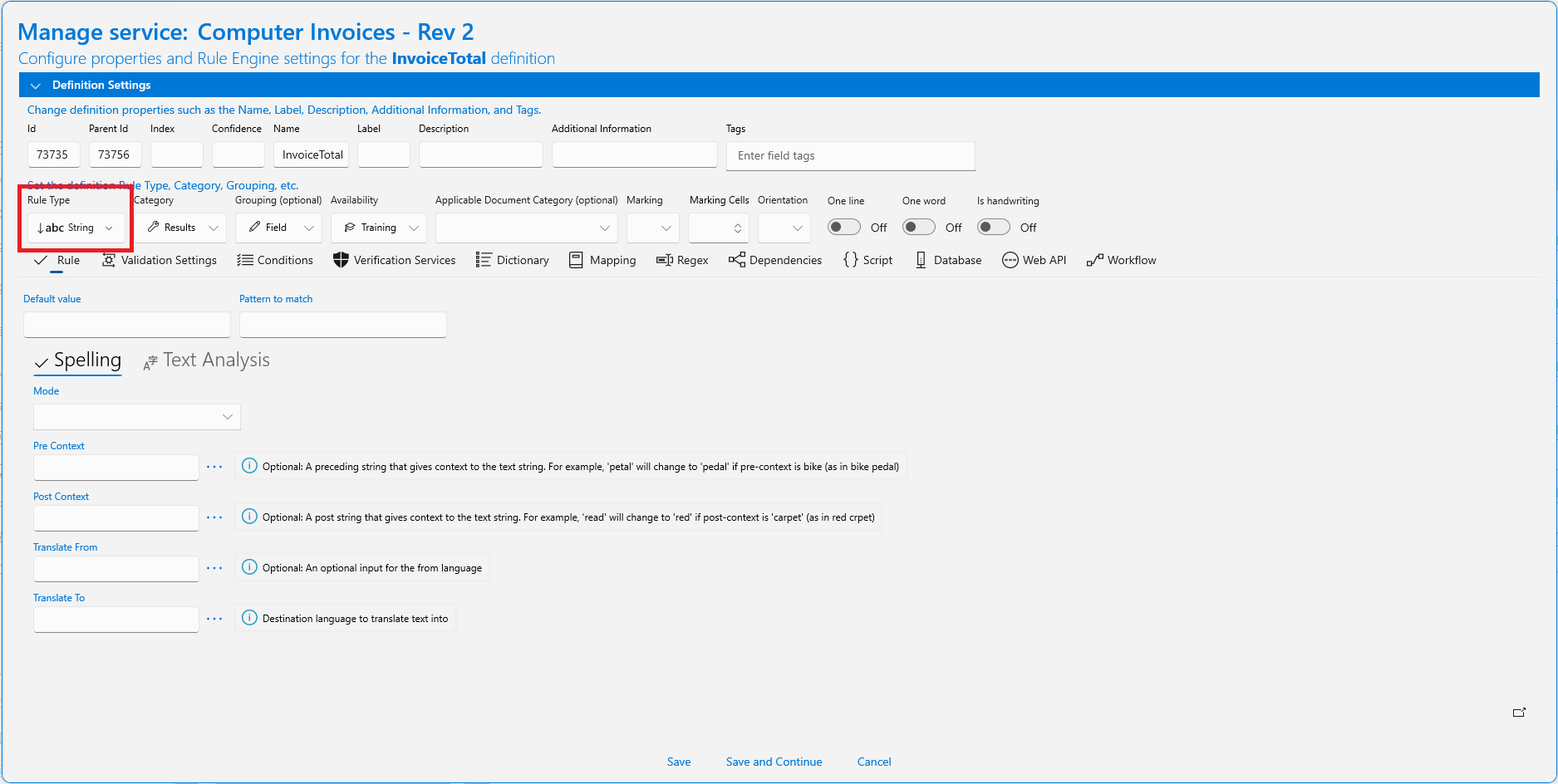

This will open the dialogue to select and configure the Rule. The Rule Type can be assigned here for the selected field.
