Microsoft Forms Custom Invoices

The Microsoft Form Recognizer - Custom Invoice Service extends the functionality of Microsoft Form Recognizer to specifically extract information from invoices. Specifically, this service will return the same extracted OCR data in the form of Key-Value Pairs, but it returns the Invoice Line Items in table format.

This makes the processing of line items much easier, as invoice data such as Item Codes, Descriptions, Unit Prices, VAT, Bruto- and Netto Amounts can easily be grouped.

Setup and Train Service

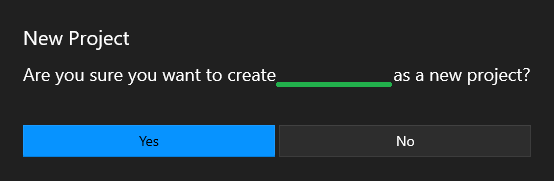

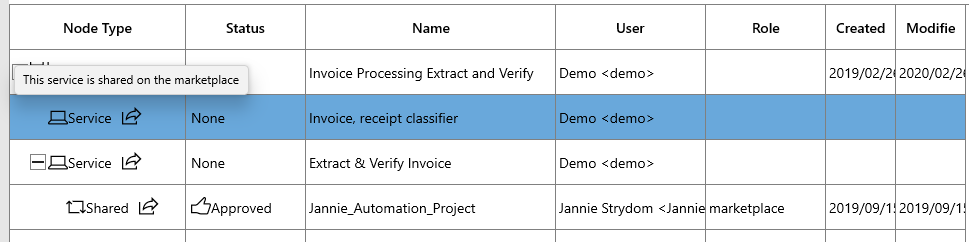

  1. Open the project you would like to add the service to
  2. Click on Add Service
  3. Select the Microsoft Forms Recognizer
  4. Step 1 – Service (Displays the service setting, you can change it as required)
  5. Click the “Next” Action in the Action Bar to save the Service
  6. Step 2 Classes, to add a Class View to Document Categories (Click next to save categories)
  7. Step 3 Training *
    1. Click “Upload Training Documents” in the Action Bar
    2. Select the Document Category you want to upload documents to. The demos training files can be found at the following link: Click here
    3. Upload Documents for each category you want to train
    4. Click Train Service once all documents have been uploaded
    5. A log Window will open displaying the current logs for the Training Document
    6. Click the Next button when done training
  8. Step 4 Definition, the definition Document would be created after the Service has been trained successfully

Add and Process Documents

  1. In the Microsoft Forms Recognizer - Custom Invoices Service click on the Inbox button.
  2. Select the Status you want to upload and use Status None or Received for new documents that have not been processed yet.
  3. Select an optional category if you know the category for the document, if you don’t want to select one just click on “No selection”.
  4. Find the files on your Local machine and upload them. The demos test files can be found at the following link: Click here
  5. After all the documents have been uploaded you can check the documents to be processed, click on “Processed Checked” to process the documents

It is recommended to only process a few documents at a time, especially if it is a new service to properly test if you receive the results you want before processing everything.

View Processed Documents

  1. In the Microsoft Form Recognizer - Custom Invoices Service click on the Outbox button.

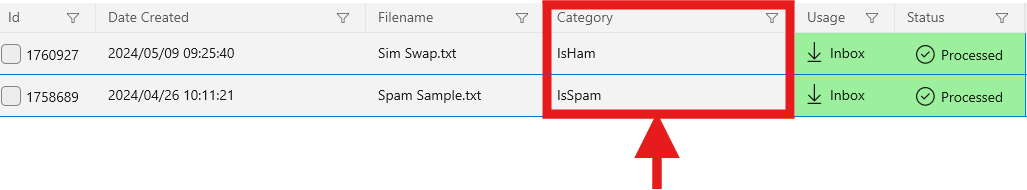

  2. You can view the Processing results by opening a processed doc for verification.

Possible use cases

  • Extract information from any invoice.
  • Specifically extract energy, sewage, and water usages from Utility Bills.

Configuring the Items Table Definition

The MS Form Recognizer - Custom Invoice service extends the functionality of the standard MS Form Recognizer service, and is focuses on extracting data from an invoice document. Invoice documents are well structured documents, and the information is typically presented in a table format. An example of an invoice is shown below.

Information can be scattered around in the document layout, such as Account Numbers, Company VAT Registration Numbers, Invoice- and Due Dates. These fields can be extracted by training an MS Form Recognizer model by specifying the regions where each field is expected to be situated on the form layout.

The Line Items are then typically presented in a table format, with generic column names to describe each line item. Typically, column headings such as Item Code, Description, Quantity, Units, Unit Price, and Amount are often used. However, there is no official guideline or standard when it comes to the actual wording of the column headers. AIForged addresses this issue by allowing users to create and customize the column headings that are expected to be on an Invoice. This is done by creating Tags that will map the table heading to an existing Table Column Parameter Definition. Consider the Items Table in the screenshot below.

AIForged automatically creates a standard Items Table when the service is created. Generic names are used for column headings. AIForged allows users to add Tags to the Table Column Parameter Definition, which will be used to compare the text used as column headings on the Invoice. For instance, in the example invoice above, the term Qty is used to denote the number of items are billed for for each line item. In order to map the term Qty to an existing Units column definition, double-click on the the Units definition to open the Definition Editor.

By default, a pre-populated list of Default Tags are created for each column in the Items Table. In this example, the term Qty is already added to the list of tags, meaning that the MS Form Recognizer - Custom Invoices service would already match the Qty column to the Units Definition.

The screenshot below shows, after that model was trained, how the table has been extracted for the Line Items on the invoice.

By using the Tags List, other descriptions or terms can be added that will allow MS Form Recognizer - Custom Invoice service to map any Line Item Table to the default Table definition created in AIForged. Even words from other languages can be added to the Tags List.

Service Configuration Settings

The Microsoft Form Recognizer Service can be configured by the user as a flexible solution. The following Settings are available:

SettingTypeRequired TypeDescription
ArchivingStrategyOptionalDays before documents get deleted.
BatchSizeHiddenProcessing batch size.
DocumentProcessedStatusOptionalDocument status used to denote that a document has been processed.
EnabledHiddenEnable or disable the service.
EnableSelectionMarksOptionalSpecifies whether the service should save any selection marks returned by MS Form API call.
EnableTableDetectionOptionalSpecifies whether the service should save any tables detected by the MS Form Recognizer API call.
ExecuteBeforeProcessWhen set up as a child service, specify whether this service should be executed before the parent service gets executed
ExecuteAfterProcessWhen set up as a child service, specify whether this service should be executed after the parent service gets executed
IgnoreTablesOtherThanItemsTableOptionalSpecifies whether any tables other than the main 'Items' table should be saved. This is useful when many tables are detected on the document, which is typically the case with Invoices.
MatchHeadingLevenshteinConfidenceOptionalTry to match heading columns using a Levenshtein confidence. This is useful when poor quality docs might misidentify characters when trying to match tables to existing table parameter definitions.
MinimumColumnMatchCountOptionalThe minimum number of columns required to be matched to map the table to an existing table parameter definition. If this number of column can't be matched, then a new table definition is created.
MatchTablesWithSameColumnCountTry to match a table to an existing table parameter definition by using column counts only. This is especially useful when tables span multiple pages without repeating headers on each page.
PasswordOptionalUsed for service authentication. Custom Code can be used to set the password. Can be set per document.
RemoveCommentsOptionalRemove human comments from a document.
SaveOCRLayoutSave the OCR layout of the documents (Lines, words, etc.).
UseDefaultCategoryforTableDefsOptionalSpecifies whether all table definitions should be saved in the global 'Default' category of the service. This is useful when sharing tables parameter definitions across multiple document categories.
WorkflowAlgorithmRequiredAlgorithm used for assigning users for verification for workflow item.
WorkflowDocumentRequiredEnable document workflow for this service.
WorkflowShredRequiredEnable document shred workflow for this service.
WorkflowGracePeriodRequiredGrace period before a workflow item gets escalated.
