Currency

Use the Currency Rule Type when a field should contain a monetary amount. The rule validates and normalizes the extracted value, applies culture-aware formatting, and optionally strips characters that don’t belong in a currency amount.

Currency rule — base options

When to use

  • Invoice totals, line-item amounts, taxes, fees, balances, and payments.
  • Any field that must be parsed as a number and formatted as currency with consistent separators and decimals.

Open the field configuration

See Field Rules (Rules Engine) for how to open the field configuration:

  • From the document overlay (supported services), or
  • From the Fields panel on the right sidebar.

Configure the Currency rule

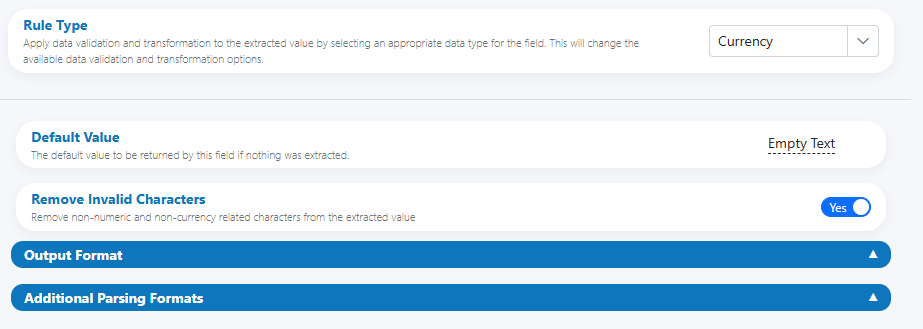

Currency rule — overview

Core settings:

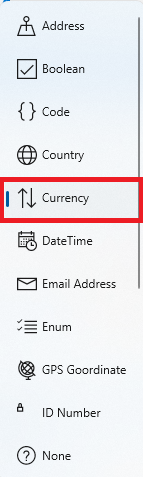

  • Rule Type: Currency
  • Default Value: Value to return when nothing is extracted (e.g., Empty Text, 0, or a business default).
  • Remove Invalid Characters: When enabled, removes non-numeric and non-currency characters from the extracted value.

Keep it clean

Enabling “Remove Invalid Characters” helps eliminate stray labels (e.g., “Total:”) and whitespace before parsing.

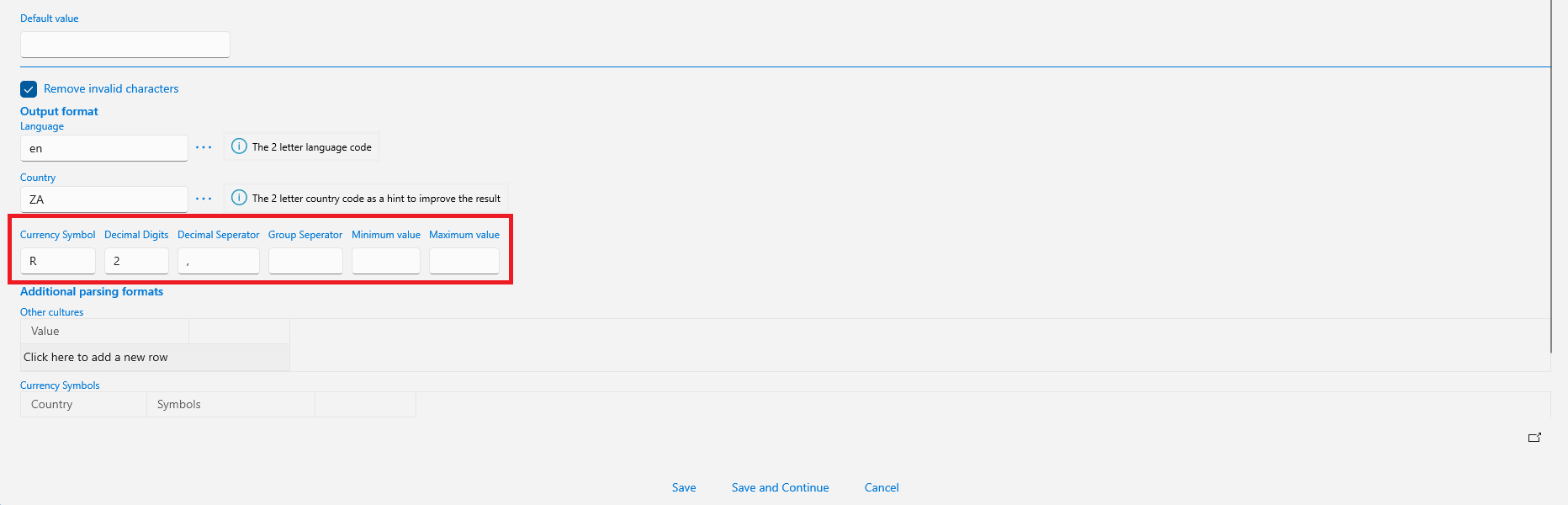

Output Format

Define the culture and presentation of the final output.

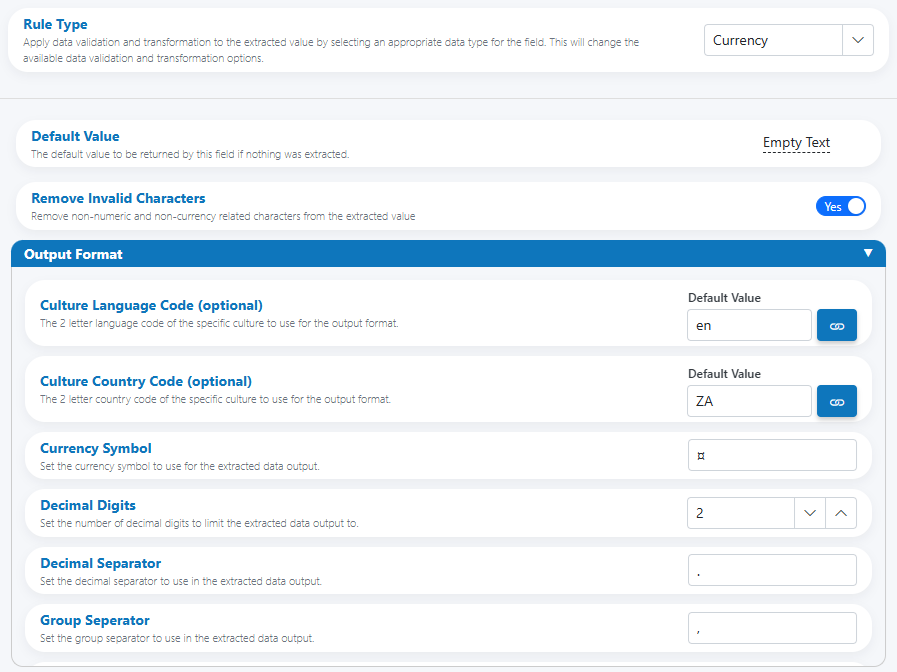

Currency rule — Output Format

  • Culture Language Code (optional)
    Two-letter language code used for output (e.g., en, fr).

  • Culture Country Code (optional)
    Two-letter country code used for output (e.g., US, ZA).

  • Currency Symbol
    The symbol to render with the formatted value (e.g., $, €, £, R).
    Leave blank to rely on culture defaults, or set explicitly for consistency.

  • Decimal Digits
    Number of fraction digits for output (e.g., 2 for cents).

  • Decimal Separator
    Character used for the decimal separator in output (e.g., ., ,).

  • Group Separator
    Character used for the thousands separator in output (e.g., ,, ).

How culture and overrides interact

Culture provides sensible defaults for symbol and separators.
If you set Symbol/Separators explicitly, those take precedence over culture defaults.

Separator mix-ups

If the output uses . for decimals but the source uses ,, parsing may fail or misinterpret values (e.g., 1.234 vs 1,234). Use “Additional Parsing Formats” to accept multiple input styles safely.

Additional Parsing Formats

Accept more than one input style while still producing a single, consistent output.

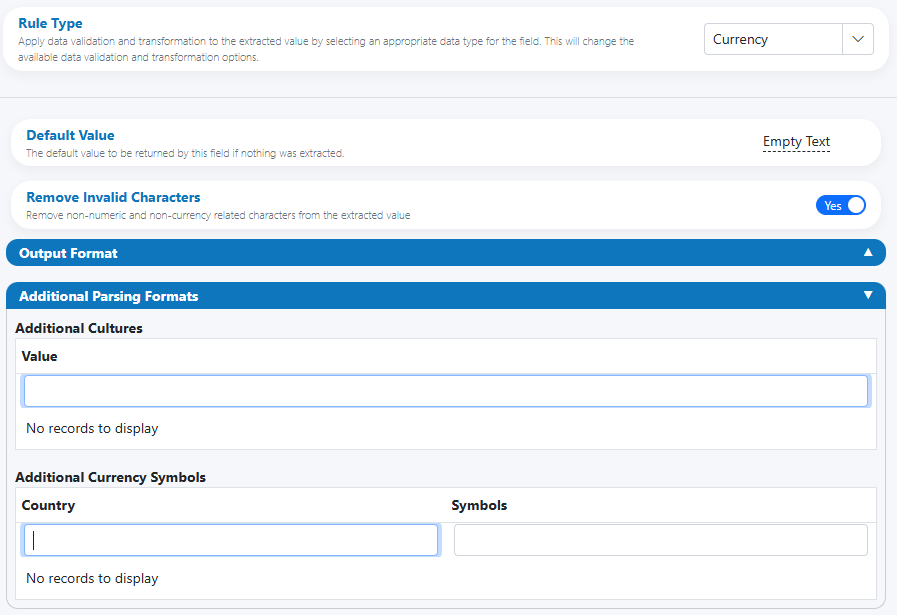

Currency rule — Additional Parsing Formats

  • Additional Cultures
    Add culture codes the parser should accept on input (e.g., de-DE, fr-FR). This allows values like 1.234,56 € to be understood even if your output uses a different style.

  • Additional Currency Symbols
    Add symbol variants the parser should accept on input, mapped by country/context (e.g., accept ZAR, R, R with/without spaces).

Parse wide, format narrow

Accept the common input variations you see (extra cultures/symbols), then standardize output with a single culture and explicit separators. This keeps downstream systems stable.

Examples

  • Standardize mixed inputs

    • Inputs seen: €1.234,50, 1,234.50 USD, R 1 234,50
    • Additional Cultures: de-DE, fr-FR
    • Additional Currency Symbols: add USD, €, R
    • Output Format: Language en, Country US, Symbol $, Decimal Digits 2, Decimal . Group ,
    • Result: All values are rendered as $1,234.50

  • Keep local presentation

    • Inputs seen: 1.234,50 €
    • Output Format: Language de, Country DE; use culture defaults
    • Result: 1.234,50 €

Suggested reviewer note (HITL)

“Verify the amount and symbol. If separators look wrong, correct thousands/decimal separators before approving.”

Trigger review when:

  • The value cannot be parsed under any configured culture/symbol.
  • The parsed value is negative where only positive amounts are allowed.
  • The symbol parsed does not match the expected output or allowed list.
  • Decimal digits exceed the configured limit (e.g., > 2).

Testing checklist

  • [ ] Test typical inputs from each source (e.g., 1,234.50, 1.234,50, 1 234,50).
  • [ ] Verify that removing invalid characters does not remove valid signs or separators.
  • [ ] Confirm that the configured culture and separators produce the intended output.
  • [ ] Validate edge cases: zero values, negatives (if allowed), and very large numbers.
  • [ ] Ensure Additional Cultures/Symbols cover the formats you actually receive.

Troubleshooting

  • Amount renders with wrong separators
    Check Output Format separators; if input differs, add the input culture under Additional Cultures.

  • Symbol is missing or incorrect
    Set Currency Symbol explicitly in Output Format.
    If input symbols vary, add them to Additional Currency Symbols for parsing.

  • Value won’t parse
    Enable “Remove Invalid Characters”; ensure the input is covered by Additional Cultures/Symbols; confirm that thousands and decimal separators aren’t conflicting.

  • Unexpected decimals (e.g., 3+ fraction digits)
    Set Decimal Digits to the required precision; escalate when inputs exceed it.

UI reference

  • Overview
    Currency rule — overview

  • Output Format
    Currency rule — Output Format

  • Additional Parsing Formats
    Currency rule — Additional Parsing Formats
