Telephone Number

Use the Telephone Number Rule Type when a field should contain a phone number. The rule validates and normalizes the extracted value, optionally stripping noise, and can constrain matches using country code and network/prefix patterns.

When to use

  • Phone, mobile, or contact number fields on invoices, applications, KYC, and forms.
  • Workflows where numbers must meet country/prefix policies (e.g., ZA mobile ranges).
  • Any scenario that requires clean, consistently formatted numbers for dialing or CRM.

Open Field Configuration

See Field Rules (Rules Engine) for how to open the field configuration:

  • From the document overlay (supported services), or
  • From the Fields panel on the right sidebar.

Configure the TelephoneNo rule

TelephoneNo — base options

Core settings:

  • Rule Type: TelephoneNo
  • Default Value: The value to return when nothing is extracted (e.g., Empty Text).
  • Remove Invalid Characters: Remove unrelated characters from the extracted value (recommended).

Validation helpers (optional):

  • Country Code Pattern: Provide a pattern to constrain allowable country codes (e.g., “+27” for South Africa).
  • Network Pattern: Provide a pattern to constrain allowable network/operator prefixes or number shapes (e.g., mobile prefixes).

Patterns are your policy

Keep patterns simple and explicit. Use them to enforce the exact country and/or number ranges you accept. When in doubt, validate broadly and escalate edge cases rather than over-restricting.

Input parsing and normalization (if applicable)

Recommended normalization before/with validation:

  • Trim whitespace.
  • If Remove Invalid Characters is enabled, strip spaces, dashes, parentheses, and other non-number noise.
  • Preserve a leading “+” when present (international format).
  • Normalize common OCR artifacts cautiously (e.g., O→0, l→1) only when your data policy allows; otherwise, escalate.

Ambiguity handling:

  • If multiple numbers are present (e.g., office + mobile), do not guess. Apply a selection policy (e.g., “first mobile-like match”) or escalate to review.

Extensions and shortcodes

If the value contains extensions (e.g., “x1234”, “ext 1234”) or short codes, decide whether to: - Strip the extension and store it separately, or - Escalate for human confirmation. Avoid silently discarding potentially important digits.

Output and formatting (if applicable)

  • Output the normalized number per your policy:
    • International (recommended): +<country><national> (E.164-like).
    • National: keep leading zero and local formatting (only when your systems require it).
  • If you enforce E.164, ensure the Country Code Pattern requires a leading “+” and valid country digits.

Downstream formatting

Store the canonical number (e.g., E.164) and render user-friendly formats (spaces, parentheses) in the UI or export layer.

Country Code Pattern and Network Pattern

These fields let you constrain acceptable numbers via simple, readable patterns.

  • Country Code Pattern (examples)

    • Exact ZA: ^\+27
    • US/Canada NANP: ^\+1
    • ZA or US: ^\+(27|1)
    • National-only (discourage): ^0 (accepts numbers starting with 0) — use with care.

  • Network Pattern (examples)

    • ZA mobile prefixes (082–084, 060–079, 061, 071, 072, etc.)
      Example (simplified): ^(6[0-9]|7[1-9]|8[1-4])
    • US NANP 10-digit (area code + exchange not starting with 0/1): ^[2-9]\d{2}[2-9]\d{6}$ (when country code already handled)
    • Custom office pattern: ^[1-9]\d{6}$ (7-digit internal numbers)

Notes:

  • Apply Country Code Pattern to the full, leading portion of the number.
  • Apply Network Pattern to the portion after the country code (or to the national portion if you store national format).
  • Keep patterns aligned to the final stored representation (international vs national).

Order of operations

1) Normalize and optionally strip non-digit characters (preserve leading “+”).
2) Validate Country Code Pattern (if provided).
3) Remove the country code portion and validate Network Pattern against the remaining national digits.

HITL triggers and reviewer guidance

Trigger review when:

  • The value doesn’t satisfy Country Code Pattern or Network Pattern.
  • The number is too short/long for your policy (e.g., not 11–15 digits for international).
  • Multiple different numbers are present with no deterministic selection policy.
  • OCR ambiguity is suspected (e.g., letter/digit confusion) and you choose not to auto-correct.

Suggested reviewer note (HITL)

“Verify the telephone number. Ensure the correct country code and prefix are present and remove formatting characters. Expected output: a single, valid number (preferably international format, e.g., +27XXXXXXXXX).”

Examples

  • Normalize ZA mobile to international

    • Input: “(082) 123‑4567”
    • Remove Invalid Characters: On → “0821234567”
    • Country Code Pattern: ^\+27 (stored format requires +27)
    • Policy: Convert 0 national prefix to +27
      Output: +27821234567

  • Enforce NANP (US/CA) with 10-digit national

    • Input: “+1 (415) 555‑2671”
    • Country Code Pattern: ^\+1
    • Network Pattern: ^[2-9]\d{2}[2-9]\d{6}$ (applied to 4155552671)
      Output: +14155552671

  • Multiple numbers found (requires policy)

    • Input: “Tel: 021 555 1234, Mobile: 072 345 6789”
    • Policy: Prefer mobile-like prefixes → select 072 345 6789
      Output (ZA int’l): +27723456789
      If no policy: escalate to HITL.

  • Ambiguous OCR

    • Input: “O82 123 4S67”
    • If no auto-correction policy: escalate to HITL with note to confirm O/0 and 5/S.

Best practices

  • Choose one canonical storage format (prefer E.164-like) and stick to it.
  • Use Country Code Pattern to prevent cross‑country misclassification.
  • Keep Network Pattern simple; revisit as carriers change prefixes.
  • Don’t silently drop extensions; store separately or escalate.
  • Log validation failures (which pattern failed, length mismatch) to speed reviews.

Testing checklist

  • [ ] International vs national inputs (with/without “+”).
  • [ ] Variety of formatting: spaces, dashes, parentheses.
  • [ ] Country Code Pattern acceptance/rejection (positive and negative cases).
  • [ ] Network Pattern acceptance/rejection across allowed prefixes.
  • [ ] Multiple-number strings with your selection policy.
  • [ ] OCR confusion cases (O↔0, I/l↔1) and chosen handling (auto-correct vs HITL).

Troubleshooting

  • Number passes patterns but won’t dial correctly

    • Confirm you’re storing international format; ensure any national leading 0 is handled per country rules.

  • Too many false rejections

    • Relax Network Pattern or broaden accepted prefixes; verify you’re applying it to the correct portion (post-country code).

  • Numbers frequently missing the plus sign

    • Add a pre-processing step to convert national numbers to international using the known country context.

  • Extensions pollute the number

    • Extract extensions into a separate field (regex), then validate the remaining core number.

UI reference

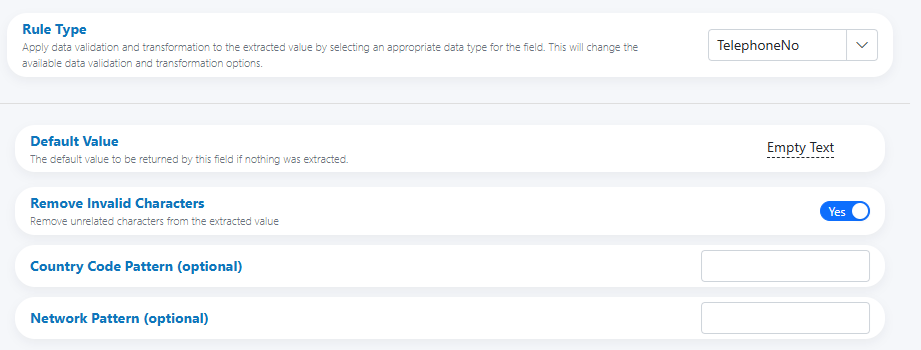

  • Base panel (Rule Type, Default Value, Remove Invalid Characters, Country Code Pattern, Network Pattern)
    TelephoneNo — base options
