Google OCR

The Google OCR Service extracts any text that might be present on a document. The raw text, without any layout information, will be extracted, and is stored in the Result property of a document.

Supported Content Types

• Images
• Pdf

If you need to use a different type of content, you can use the AIForged Pdf Converter.

Possible use cases

• Extract data from receipts
• Visualize your receipts data
• Apply RegEx Patterns on the raw text on a document.

Service Setup

1. Open the Project Detail View of the project you would like to add the service to.
2. Click on the Add Service button in the command bar.

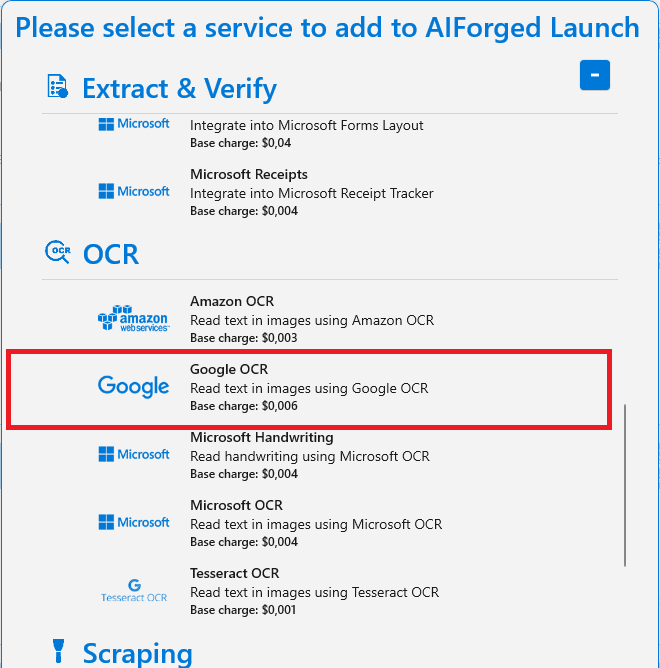

3. Select the Google OCR Service.



   4. A new Service Configuration Wizard will open: (When navigating the Wizard, please make sure to use the Next Step button in the command bar to save any changes made).

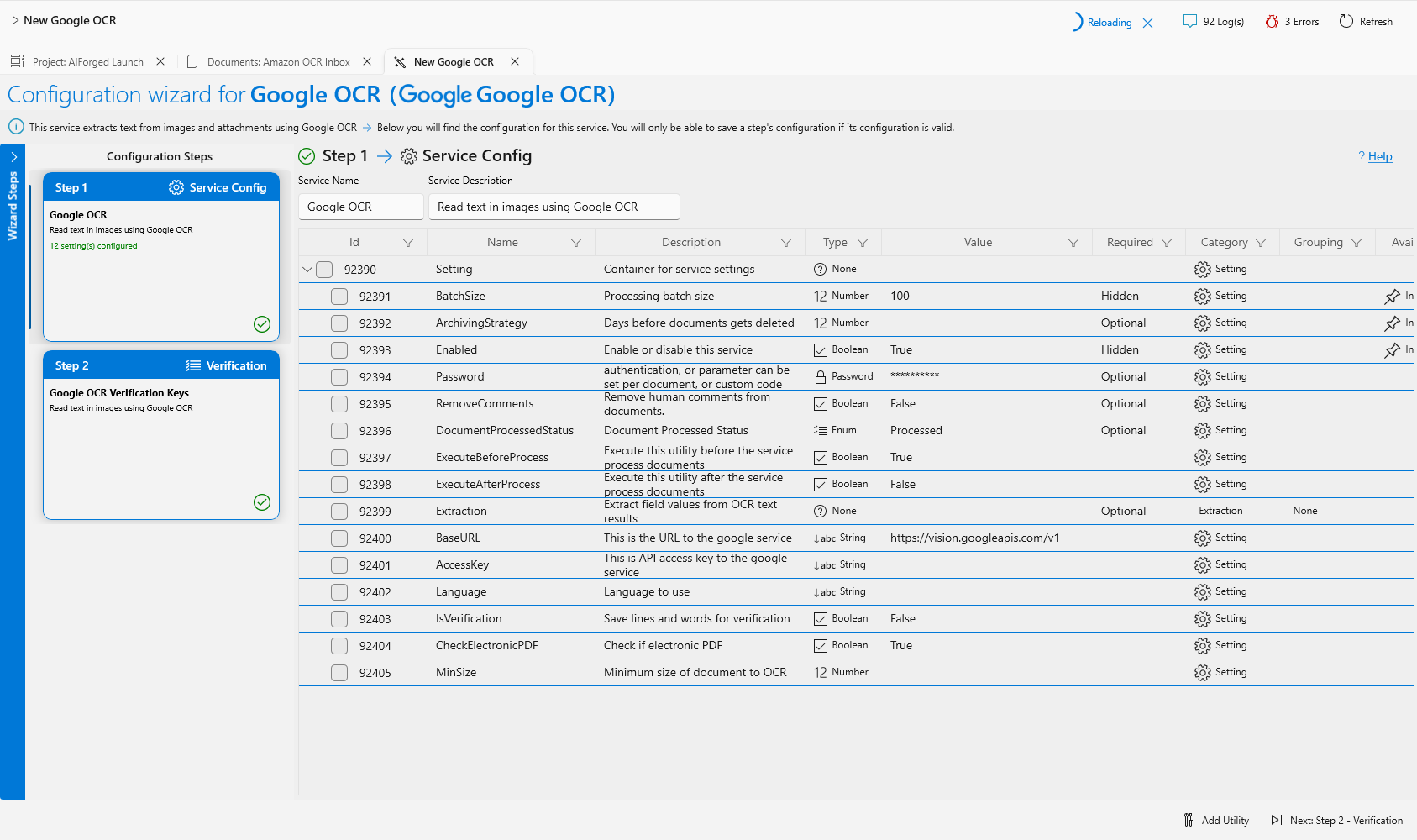

   *Step 1 - Service Config (Displays the service setting, you can change it as required).
4. Click the “Next” Action in the Action Bar to save the Service.
5. Step 2 - Verification. No verification required.

Service Configuration Settings

The Google OCR Service can be configured by the user as a flexible solution. The following Settings are available:

Setting	Type	Required Type	Description
ArchivingStrategy		Optional	Days before documents get deleted.
AccessKey		Optional	Override the Access Key to the configured Google cloud service.
BaseURL		Optional	Override the URL to the configured Google cloud service.
BatchSize		Hidden	Processing batch size.
CheckElectronic		Optional	Check if the document is electronic and extract text from there.
DocumentProcessedStatus		Optional	Document status used to denote that a document has been processed.
Enabled		Hidden	Enable or disable the service.
ExecuteBeforeProcess			When set up as a child service, specify whether this service should be executed before the parent service gets executed.
ExecuteAfterProcess			When set up as a child service, specify whether this service should be executed after the parent service gets executed.
IsVerification		Optional	Save the lines and words for verification.
Language		Optional	Hint at the language to use when performing OCR.
MinSize		Optional	Minimum size of the document to OCR.
Password		Optional	Used for service authentication. Custom Code can be used to set the password. Can be set per document.
RemoveComments		Optional	Remove human comments from a document.

Add and Process Documents

1. In the Google OCR Service click on Inbox button.
2. Select the Status you want to upload and use Status None or Received for new documents that have not been processed yet.
3. Select an optional category if you know the category for the document, if you don’t want to select one just click on “No selection”.
4. Find the files on your Local machine and upload them. The demo's test files can be found at the following link: Click here.
5. After all the documents have been uploaded you can check the documents to be processed, click on Processed Checked to process the documents.

It is recommended to only process a few documents at a time, especially if it is a new service to properly test if you receive the results you want before processing everything.

View Processed Documents

1. In the Google OCR Service click on the Outbox button.
2. You can view your Processing results by opening a processed doc for verification.
